Complete guide to installing, configuring, and using the U2Code Product Addons for WooCommerce plugin.
Five short tutorials, about three minutes each.
/wp-content/plugins/u2code-product-addons-for-woocommerce, or install the plugin through the WordPress Plugins screen.An addon group is a set of fields that appears together on the product page. To create one:
Everything happens in one screen, with no page reloads: the builder is a React app, so fields appear, reorder and update instantly, and you save once at the end.

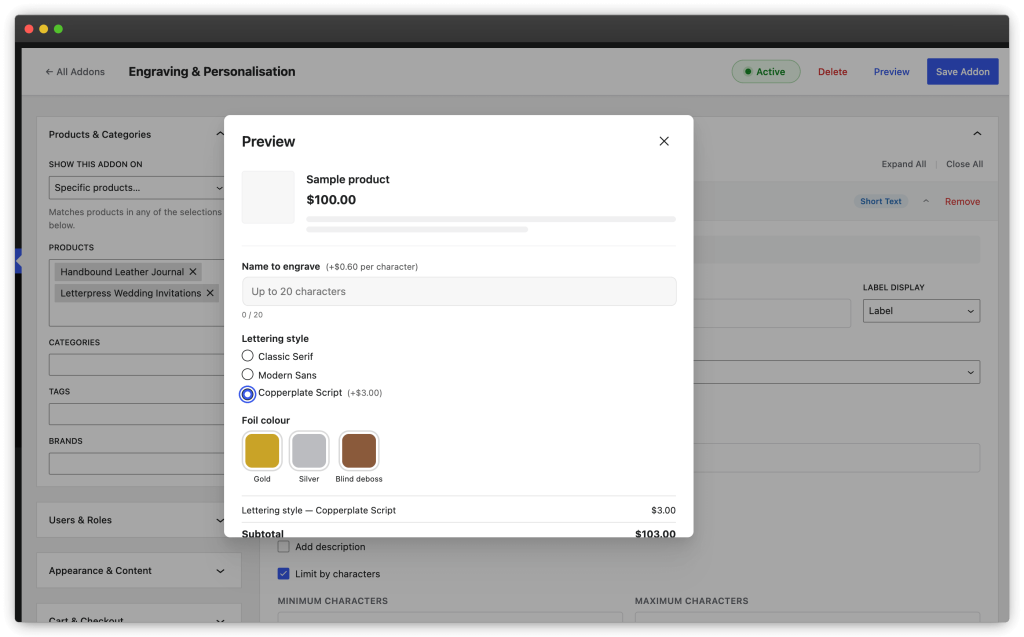

The Preview button in the builder’s top bar renders your current draft — even unsaved changes — using the real storefront markup and script. Conditional logic, character counters and the live totals box behave exactly as they will for a customer.
The preview is priced against a fixed $100.00 sample product, so percentage options are readable at a glance and the numbers don’t depend on your catalogue. What it deliberately does not show: the group’s position on the product page, your theme’s own styling, and how several groups stack — check a real product page once for those.

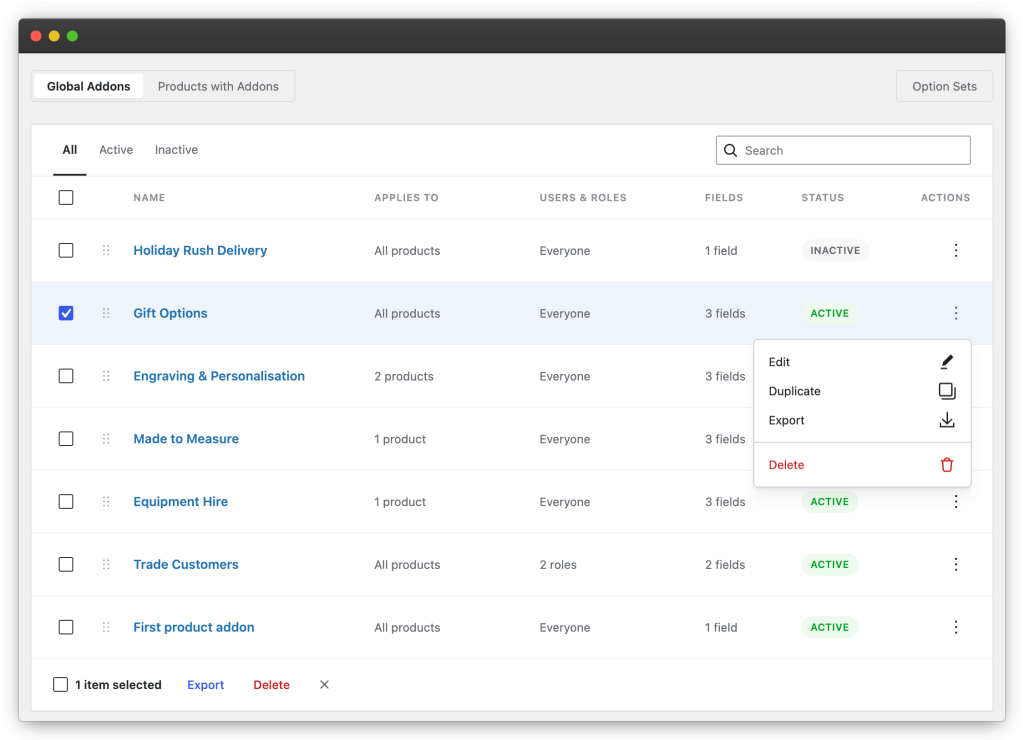

From the All Addons list you can activate or pause groups, duplicate a group to use as a starting point, reorder groups (their order decides render order when several apply to one product), and bulk-delete.
Addon groups can be exported as JSON and imported on another site — the payload is portable, so you can build a group on staging and move it to production, or share a setup between shops. The import accepts a single exported group or a list of them.
Besides global groups, every product can carry addon fields of its own — for options that only make sense on that one product. Product-specific fields and global groups render together on the same page.

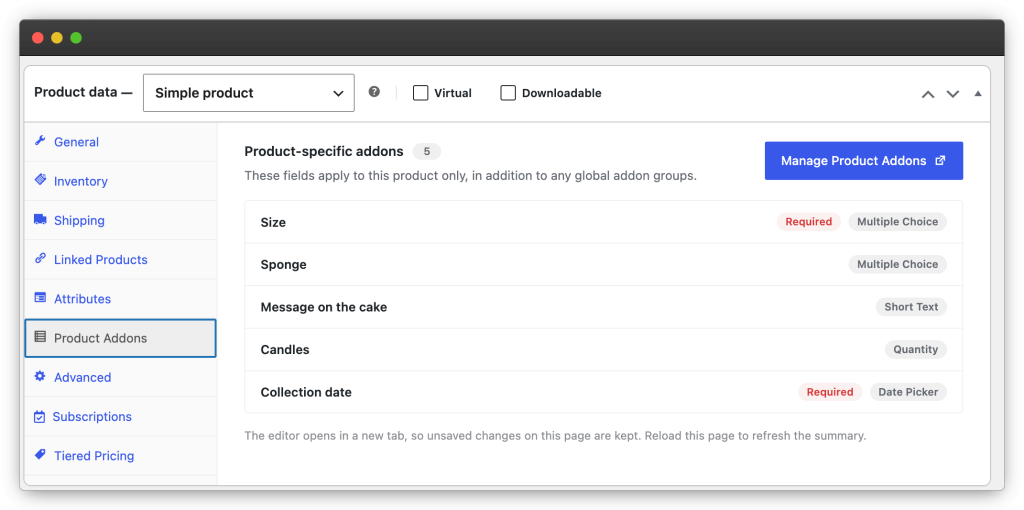

Open the product’s edit screen and switch to the Product Addons tab in the product data panel. The tab shows a summary of the product’s fields with their types, plus a link to a dedicated editor — the same full builder used for global groups, with every field type, pricing mode and conditional logic rule available.
Worth knowing:
The Products & Categories panel controls where a group appears. Choose All products, or switch to specific targeting by products, categories, tags, brands or attributes. Exclusions let you apply a group everywhere except selected items — for example, all of a category except products on sale.
The Users & Roles panel limits who sees the group. Leave it empty to show the fields to everyone, or restrict them to selected user roles or individual customers. A special Guest role targets logged-out visitors, and exclusions work here too — show a field to everyone except a role, for instance.
Every field has a label, an optional description, and a Required toggle. The available types:

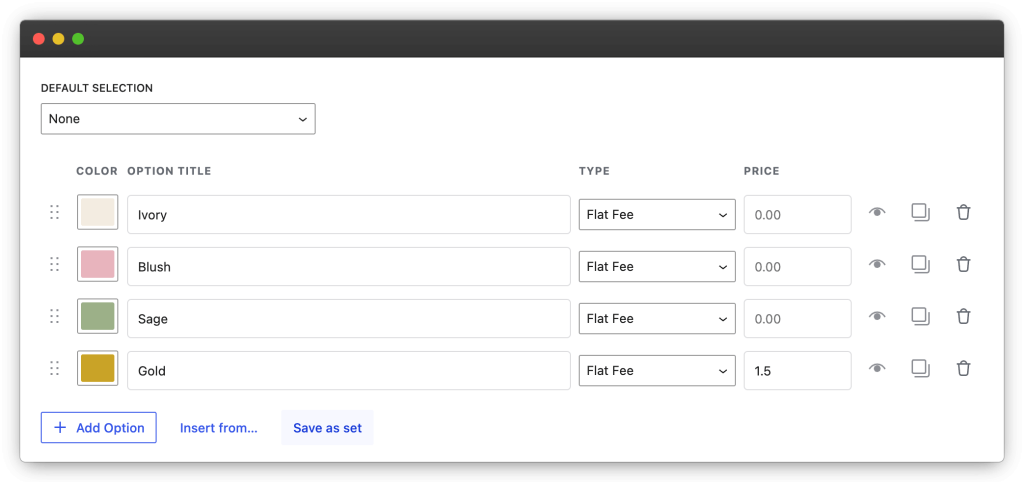

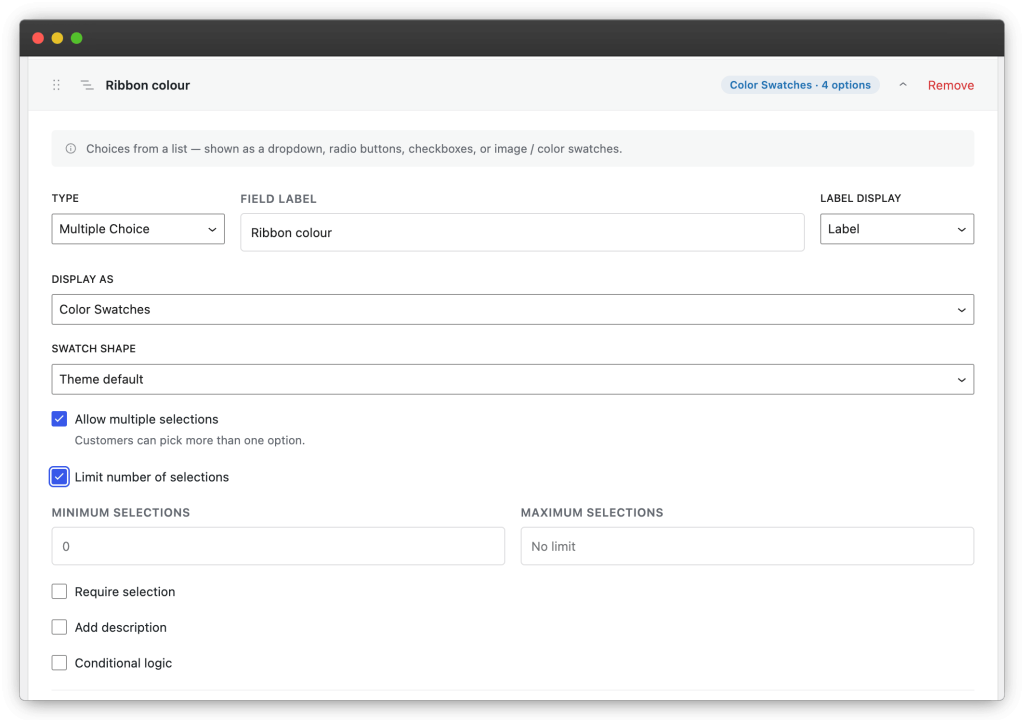

Choices from a list, displayed as a dropdown, radio buttons, checkboxes, or image / color swatches. Each option carries its own price. Options can be typed in by hand, inserted from a reusable option set, or imported from a product attribute.
For multi-select fields you can limit how many options the customer may pick — a minimum, a maximum, or both (for example “choose 2 to 3”). Customers see a clear message when they are outside the range.
A single yes/no choice — gift wrap, express handling, or an agreement the customer must accept.

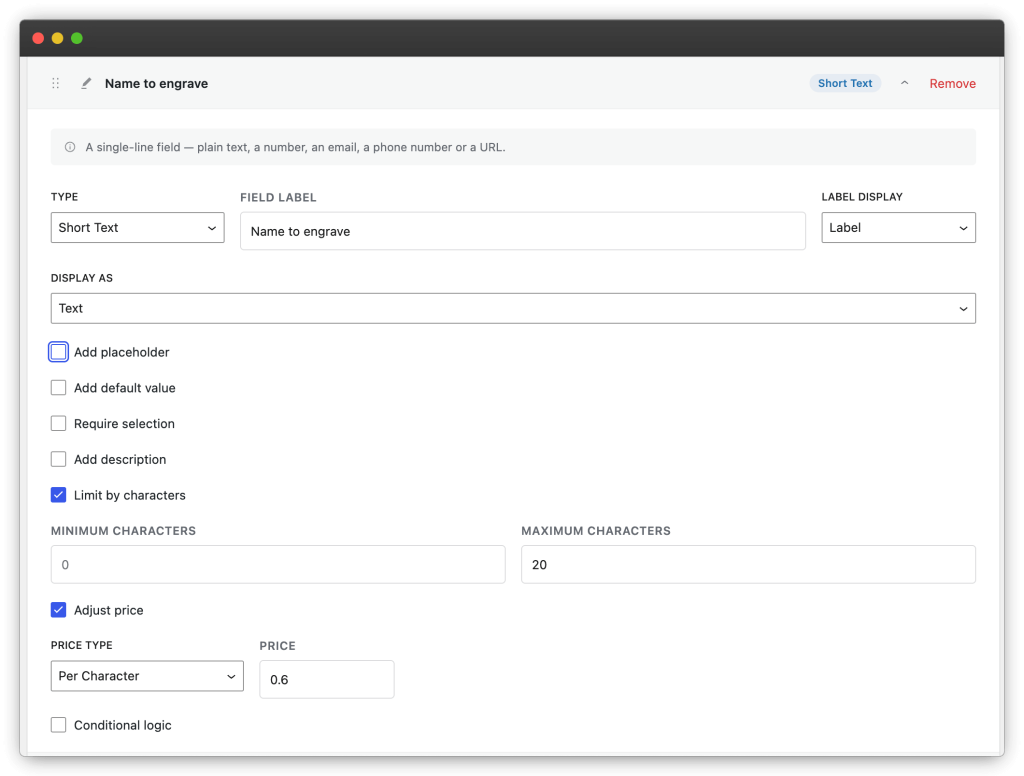

A single-line field. It can render as plain text, number, email, phone or URL input, each validated accordingly. Supports per-character pricing — ideal for engraving.
A multi-line text area for longer input such as gift messages or special instructions.
A numeric amount priced per unit — e.g. extra batteries at $1.20 each.
Width × height priced by area, for made-to-measure products like blinds, glass, fabric or signage. Units: mm, cm, m, in, ft.
A date input for delivery or occasion dates.
A start and end date, priced per day — built for rentals and hire periods.
Lets the customer attach a file, such as artwork or a photo. See File uploads & storage for limits and storage details.
An amount the customer enters themselves — donations and tips.
Display-only text used to group or introduce fields. It collects no value.
Every priced field or option uses one of six pricing modes:

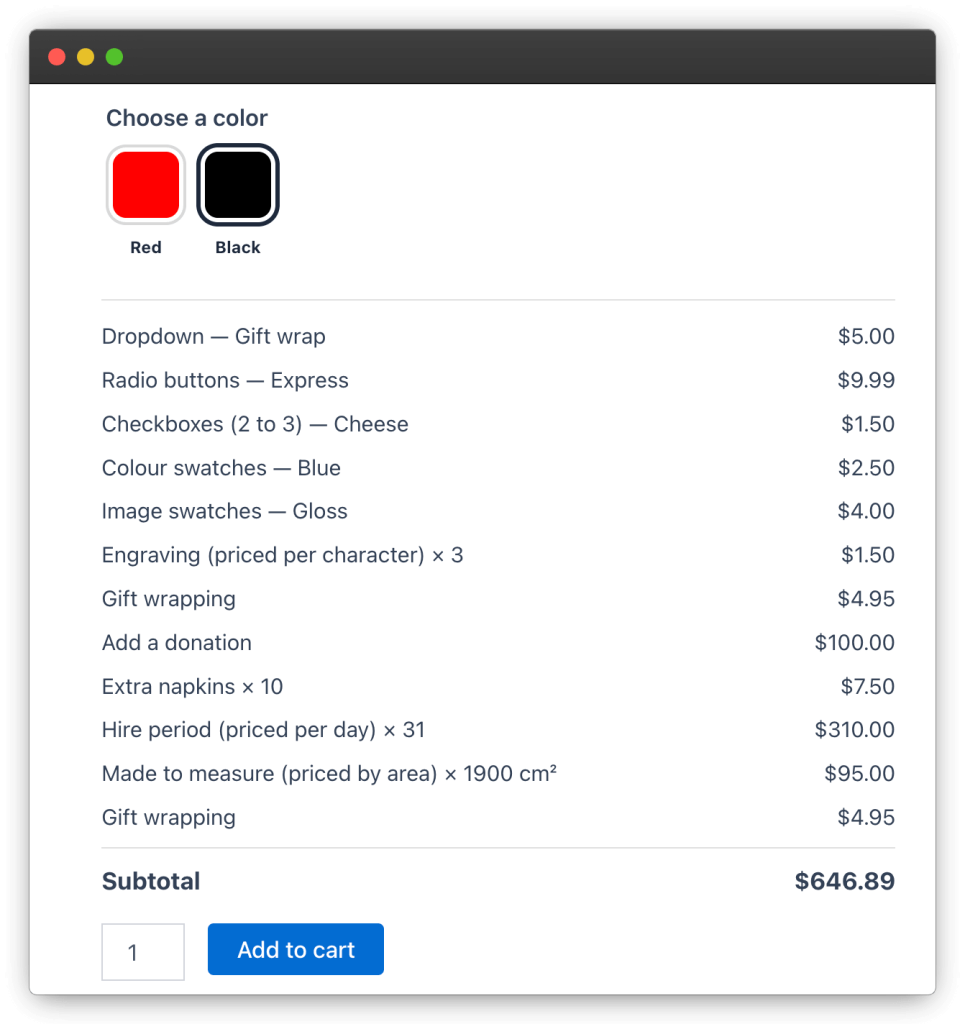

The live totals box on the product page shows the product price, the options subtotal and the grand total, updating instantly as the customer makes choices — before Add to Cart.

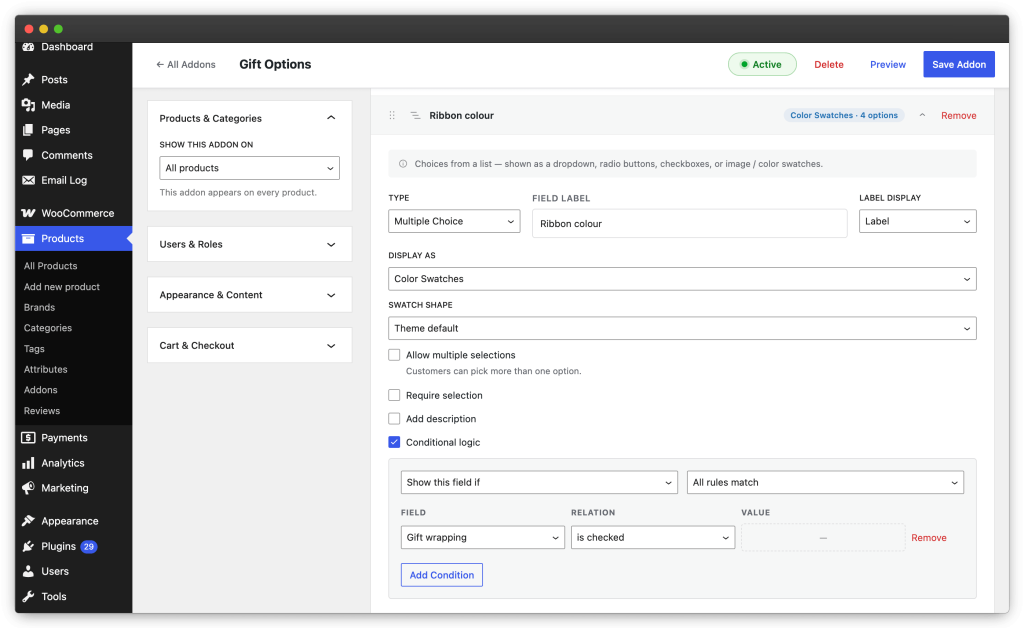

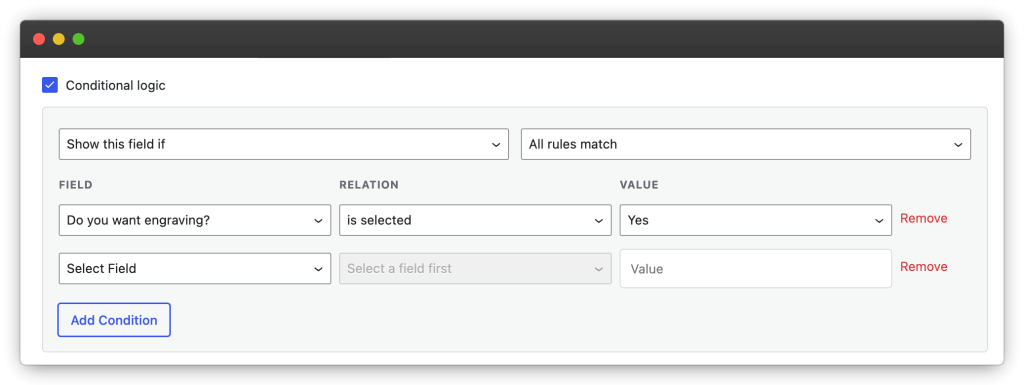

Show or hide any field based on the values of other fields. Each rule compares a field against a condition; a field can carry several rules matched with ALL (every rule must pass) or ANY (one is enough).
Available conditions depend on the field being checked, and include: selected / not selected, is / is not, contains, starts with, ends with, numeric comparisons (=, ≠, >, ≥, <, ≤), date is / before / after, empty / not empty, uploaded / not uploaded, and checked / not checked.
Typical uses: reveal a “Gift message” area only when “Add a gift message?” is checked, or build a step-by-step configurator where each answer unlocks the next question.

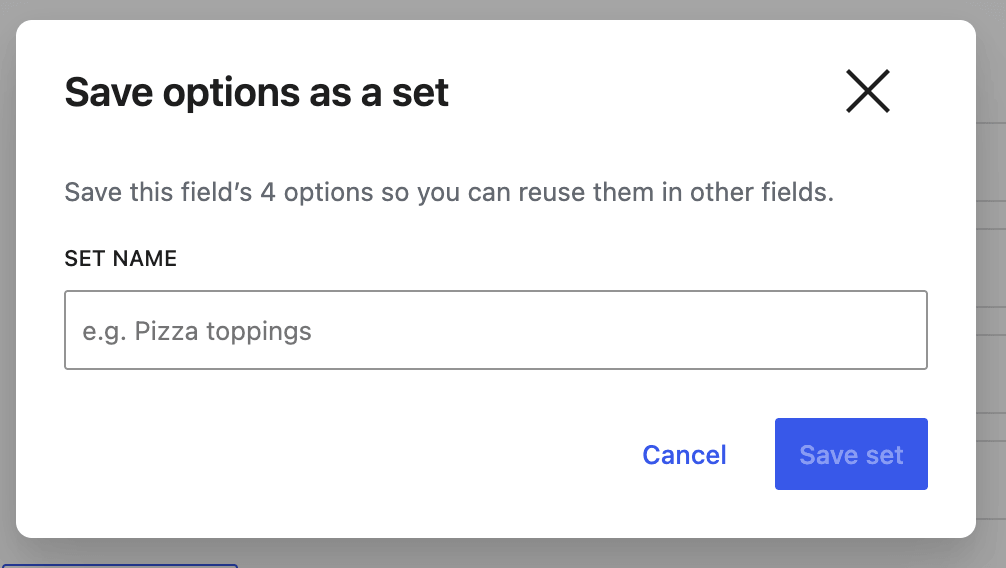

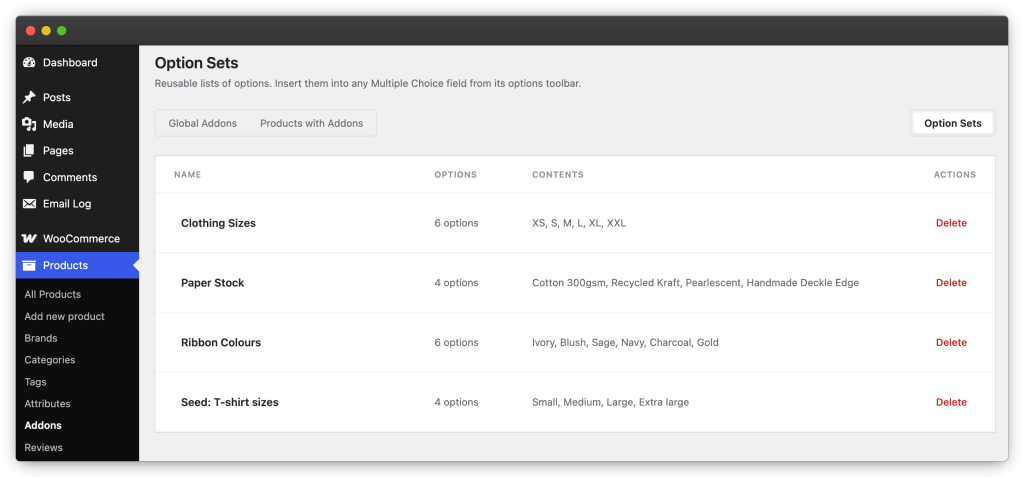

Option sets are reusable lists of options — colors, sizes, materials — that you build once and insert into any Multiple Choice field. You can also import options directly from an existing product attribute in one click instead of typing them again.
The Appearance & Content panel controls how a group renders:
The position setting picks where the group renders inside the add-to-cart form: before or after the Add to Cart button, before or after the quantity selector, or after the variation options. On variable products, positions that WooCommerce hides until a variation is chosen are automatically relocated above the variations table so the fields stay visible.

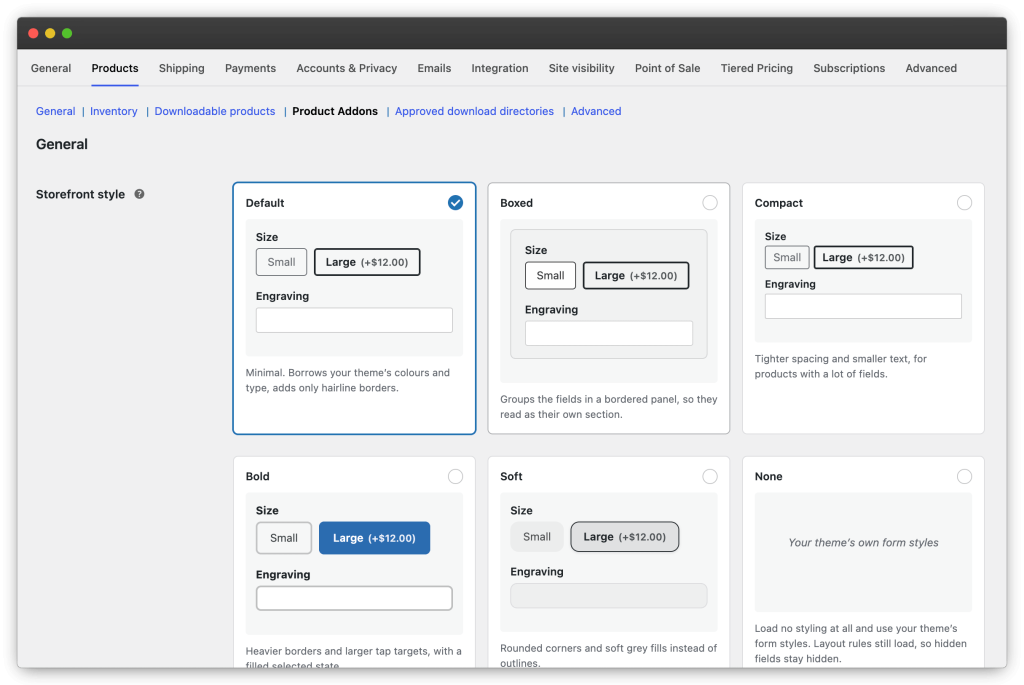

A global Storefront style (in Settings) decides how addon fields look on the product page. Six styles ship with the plugin, each shown as a live preview rendered by its real stylesheet:
Selected options travel with the product through the cart, checkout, order emails and the admin order screen — in both the classic and blocks (Store API) cart and checkout.
In the Cart & Checkout panel you can choose:
Each order line lists the customer’s selections with their prices, and uploaded files are linked right from the order for fulfilment. Addon data is stored as regular order item meta, so it appears in order emails, invoices from other plugins, and exports.

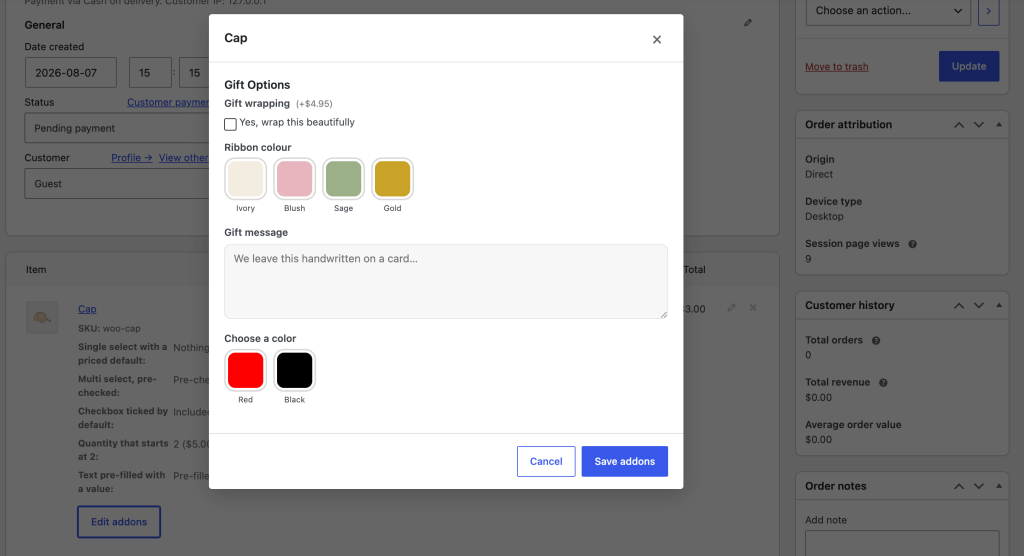

When you build an order by hand in the admin — phone orders, quotes turned into orders, or fixing a customer’s mistake without a refund cycle — a Configure addons button appears on each eligible line item. It opens a modal with the real storefront fields: conditional logic and the live subtotal behave exactly as they do for a customer, and saving runs the same validation and pricing as the cart. An admin-built line is indistinguishable from a purchased one, including for re-orders.
Two limits by design: file-upload fields are not offered in the modal (uploads belong to a customer’s session, which an admin doesn’t have), and the button appears on simple products and variations — the line types that can be priced unambiguously.
Upload fields accept the file types and maximum size you allow. Global defaults live in Settings; individual fields can be stricter than the global rules, never looser.
Files are uploaded when the customer adds the product to the cart and stored in a protected subdirectory of your uploads folder — never publicly listable. Files that end up attached to an order are always kept and linked from the order screen.
Files not attached to any order (abandoned carts, unfinished sessions) are deleted automatically after a configurable number of days — 7 by default, or 0 to keep everything forever.
Products with a File Upload field use the classic product page form, because files cannot travel in a Store API request. Everything else works with the blocks cart and checkout.
Global options live under WooCommerce → Settings → Products → Product Addons
jpg, png, pdf); empty allows anything WordPress permits.Each third-party integration is listed with its status — plugin detected, integration running or idle until installed — and can be switched off individually if it conflicts with your setup. Integrations only run when the other plugin is active.
Yes. The Default storefront style borrows your theme’s colours and typography, and the None style hands styling over to your theme entirely. Five further styles are available under Settings.
Into a protected subdirectory of your uploads folder. Files not attached to any order are deleted automatically after a configurable number of days — see File Uploads & Storage.
Yes. Fields render above the variations table so they are visible before a variation is chosen.
Yes — the Edit options link on the cart line reopens the product page with everything prefilled, including the quantity.
Yes — use the Configure addons button on the order line. See Manual & phone orders.
Yes — export them as JSON and import on the other site. See Import & export.
Check, in order: the group’s Active toggle is on (product-specific addons have their own toggle on the product’s tab); the product matches the Products & Categories targeting (and isn’t excluded); the current user matches the Users & Roles rules; and no conditional logic rule is hiding the field.
Only if you opted in via On uninstall in Settings. Otherwise all groups, option sets and files stay in place — and deactivating never removes anything.
